Description

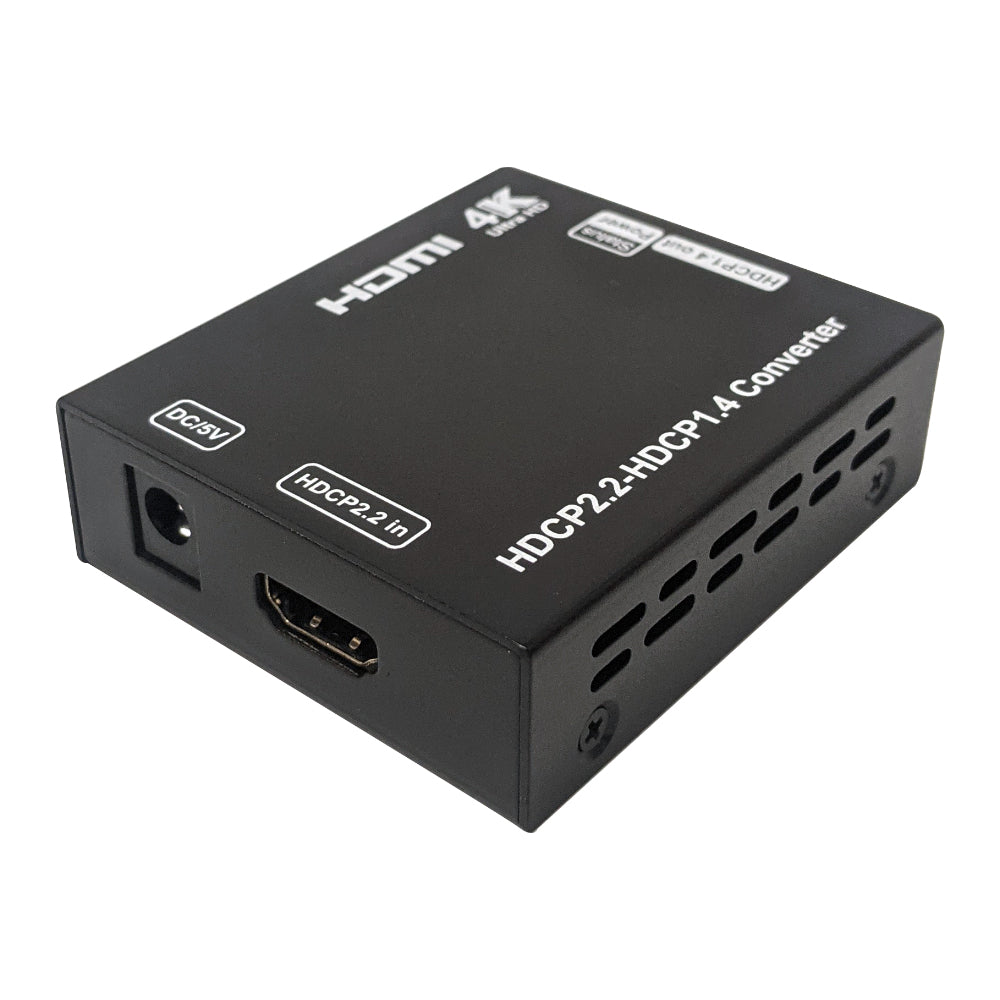

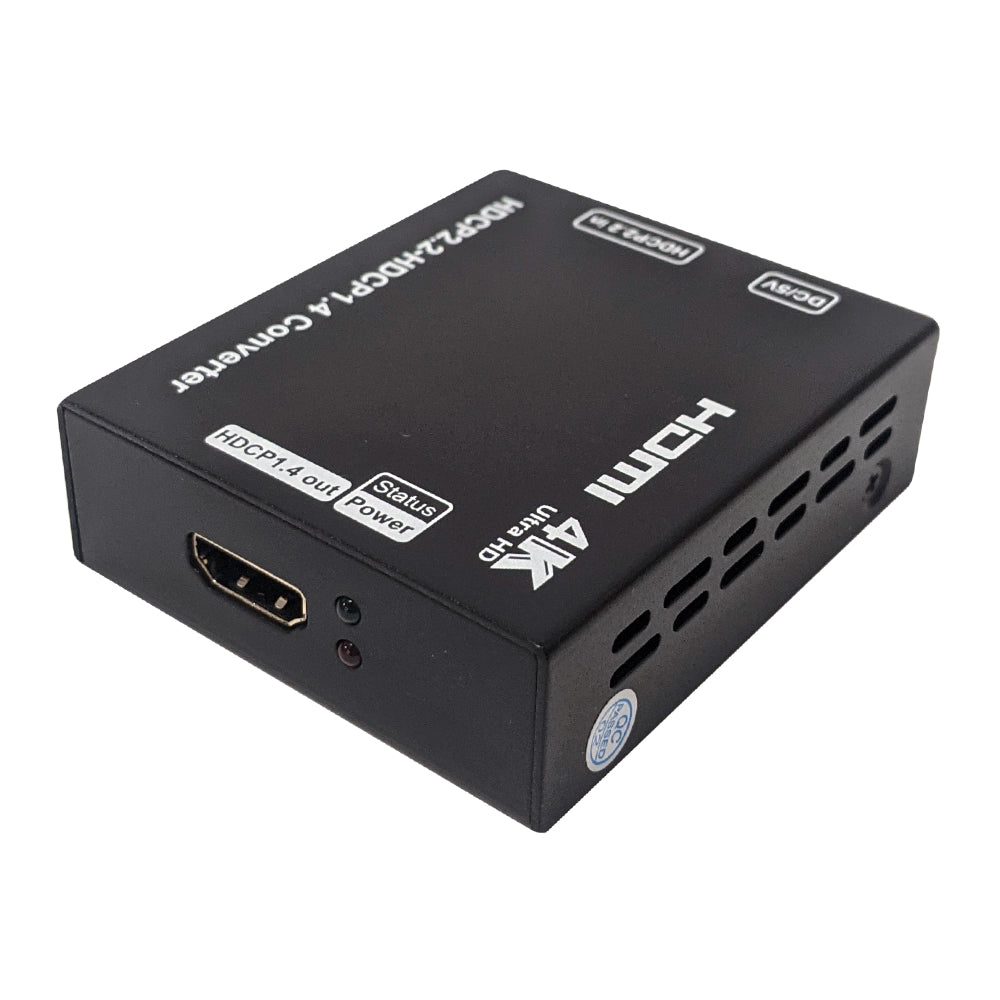

This HDMI video converter consists of one HDMI input and one HDMI output. It is used to convert a HDMI HDCP 2.2 to HDCP 1.4 and it supports 4K ultra HD @60Hz.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal |
| Dimension (LxWxH) | 70.2x60.2x21.1mm |
| Operating Temperature | -5 to +35℃(+23 to +95℉) |
| Operating Humidity | 5 to 90%RH (No Condensation) |
| Power | |
| Power Supply | DC 5V/1A |
| Connector(s) | |
| Input | 1 - HDMI Female HDCP2.2 |
| Output | 1 - HDMI Female HDCP1.4 |
| Performance | |
| Video Format Supported | DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K |
| Maximum Resolution | 4Kx2K@60Hz, YUV 4:2:0 |
| 3D Video Support |
Compliant |
| Transmission Range | 100m/328ft over RG59 Cable |
| Color Space Support | xv-YCC/deep color 36bit |
| Audio Support | DTS-HD Master Audio, Dolby true-HD. LPCM |
| Max. Power Consumption |
1.5 Watts |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.25 lbs [0.12kg] |
| Contents | |
| Included in Package | 1 - Converter |
| 1 - DC 5V 1A Adapter | |
| 1 - Manual | |
