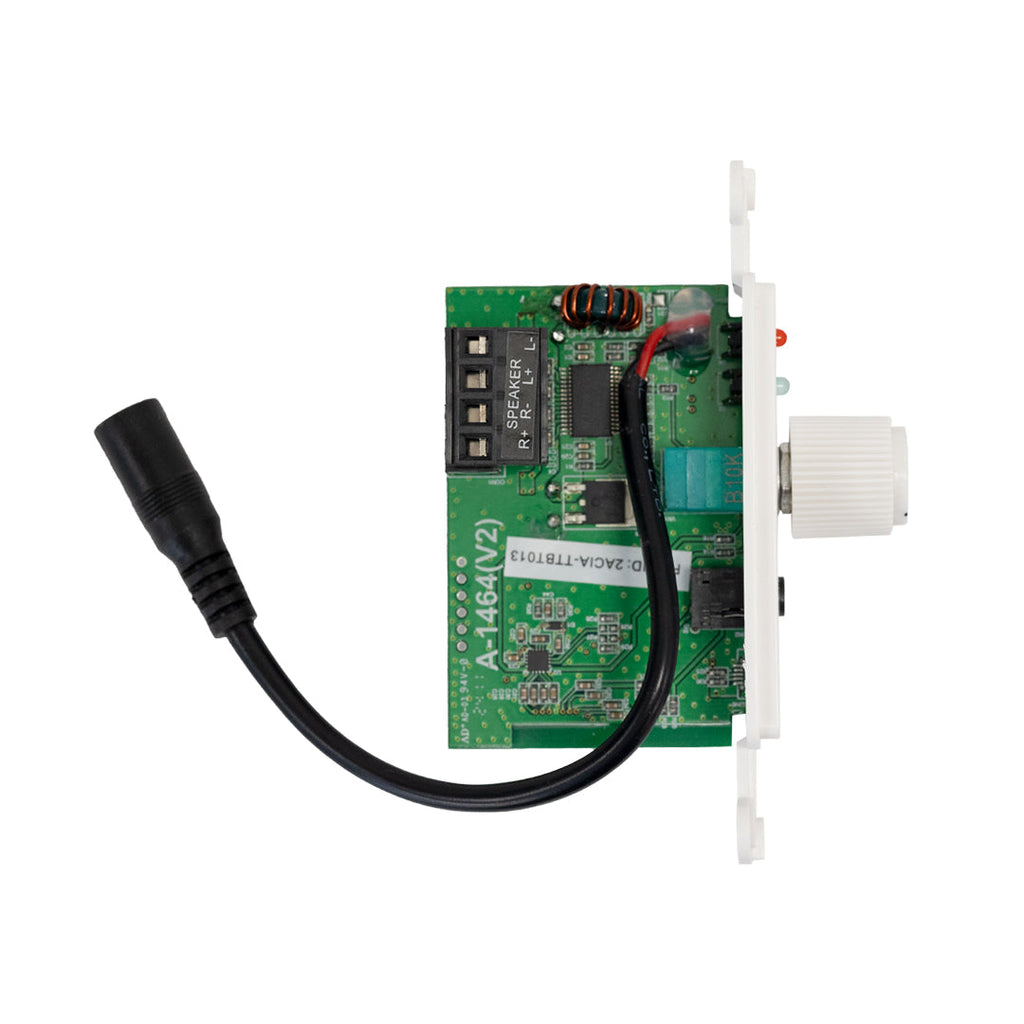

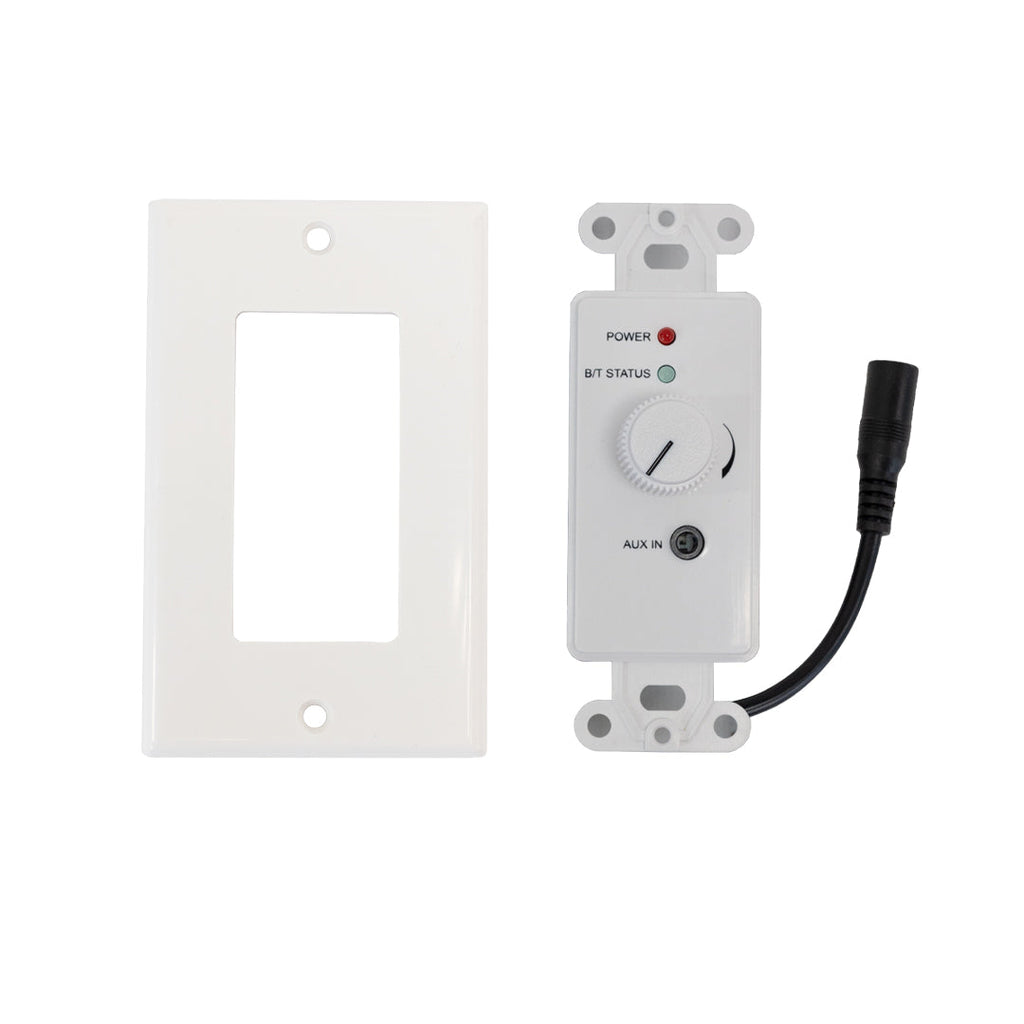

This wall plate kit consists of a decora wall plate, amplifier and power supply. It is typically used to connect to a pair of in-wall/in-ceiling/wall-mounted speakers and control them via Bluetooth or plugging directly into them using a 3.5mm cable. They are typically used in small spaces such as bedrooms, bathrooms, garages or backyards.
| Physical Characteristics | |
|---|---|
| Color | White |
| Material | ABS |
| Plate Size | Single Gang |
| 3.5mm Cable Length | 6.5 Inches |
| Connector(s) | |
| Audio Inputs | Bluetooth Receiver or Stereo Audio Line Level |
| Performance | |

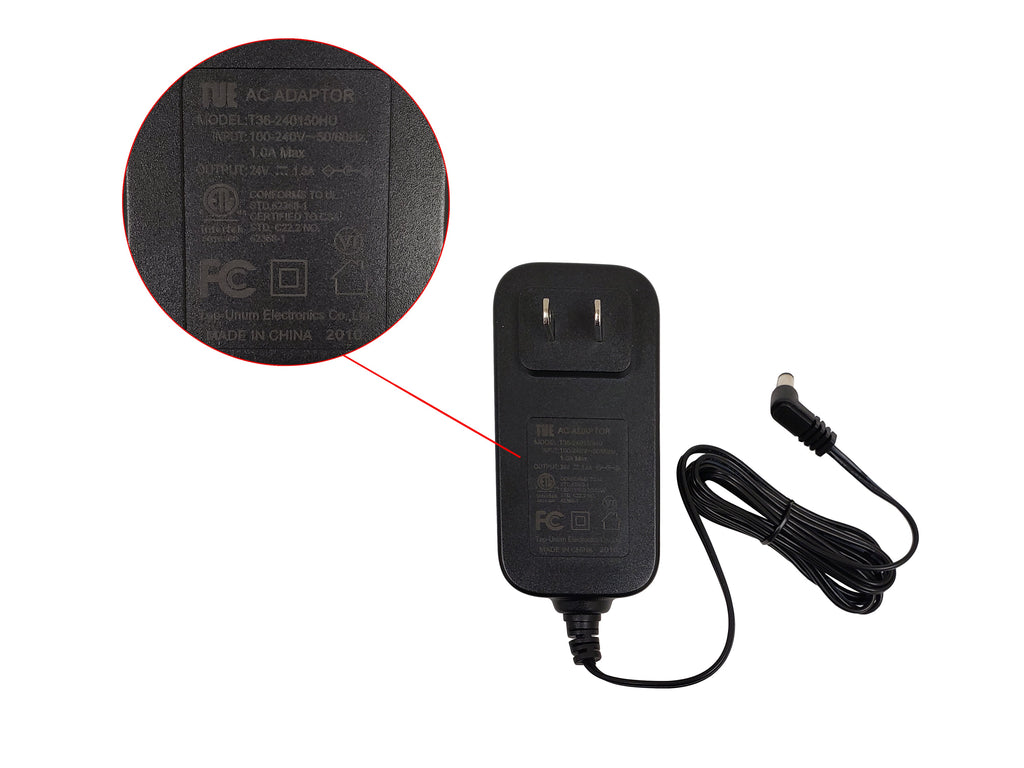

| Power Source | 24 VDC |
| Power Amplifier Type | Stereo Class-D |
| Output Power | 24W (rms) per channel (@ RL=4 ohm) |
| Total Harmonic Distortion + Noise | THD+N: 0.1% (@ RL=4 ohm, f = 1 kHz) |
| Minimum Load Resistance | 4 ohm |
| Audio Priority | B/T > Aux In |
| Bluetooth Version | B/T v5.0 compliant with apt-X |
| Bluetooth Receive Distance | 30 meters (open space) |
| Supports | 3 min link-lost time function B/T automatically switches to pairing state if reconnecting fails Speaker protection circuit |
| Environmental | |
| RoHS | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.50 lbs [0.22 kg] |
| Product Dimensions | 4.5 L, 2.75 W, 1.85 D inches [11.5 L, 7 W, 4.7 D cm] |
| Contents | |
| Included in Package | 1 - Wall Plate Kit |
| 1 - Pair of Screws | |
| Warranty Information | |
| Warranty | 2 Year Warranty |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on NVR/DVR's, network switches and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
