IP68 Waterproof Shroud for RJ45 Male Fits Cable OD of 5mm to 10mm - Black
RJ45 IP68 Waterproof Shroud for RJ45 Male Cable - Fits Cable OD of 5mm to 10mm - Black
RJ45 IP68 Waterproof Shroud for RJ45 Male Cable - Fits Cable OD of 5mm to 10mm - Black
RJ45 IP68 Waterproof Shroud for RJ45 Male Cable - Fits Cable OD of 5mm to 10mm - Black
IP68 Waterproof Shroud for RJ45 Male Fits Cable OD of 5mm to 10mm - Black
RJ45 IP68 Waterproof Shroud for RJ45 Male Cable - Fits Cable OD of 5mm to 10mm - Black
RJ45 IP68 Waterproof Shroud for RJ45 Male Cable - Fits Cable OD of 5mm to 10mm - Black
RJ45 IP68 Waterproof Shroud for RJ45 Male Cable - Fits Cable OD of 5mm to 10mm - Black

RJ45 IP68 Waterproof Shroud for RJ45 Male Cable - Fits Cable OD of 5mm to 10mm - Black

Outdoor IP68 Rated AccessoriesSKU: CN-BT-IP68-BK
No reviews
Price:
$7.30
Stock:
In stock

Product Weight

CN-BT-IP68-BK
0.05 lb

Description

Overview

This IP68 rated RJ45 shroud is used as part of aCat5e, Cat6 or Cat6a cable assembly where dust, water and protection from the elements is required. It is suitable for outdoor or industrial applications. Creates a IP68 rating when used in conjunction with our matting RJ45 IP68 rated couplers.

Waterproof Assembly Boot for Outdoor Cable

This shroud is IP68 compliant to help protect your outdoor network cabling against water, moisture, dirt and insects for uninterrupted and quality connections when used in conjunction with our RJ45 IP68 rated couplers. Waterproof when immersed in water at a depth of 4 meter.

Use as Part of a Complete Kit

This shroud can be used as part of a complete kit to create an end-to-end IP rated channel.

Application

Specifications

Physical Characteristics
Material Nylon PA-66 High-Impact UL94V-0 Thermoplastic, 30% Glass Fiber Filled
Back Gasket Rubber

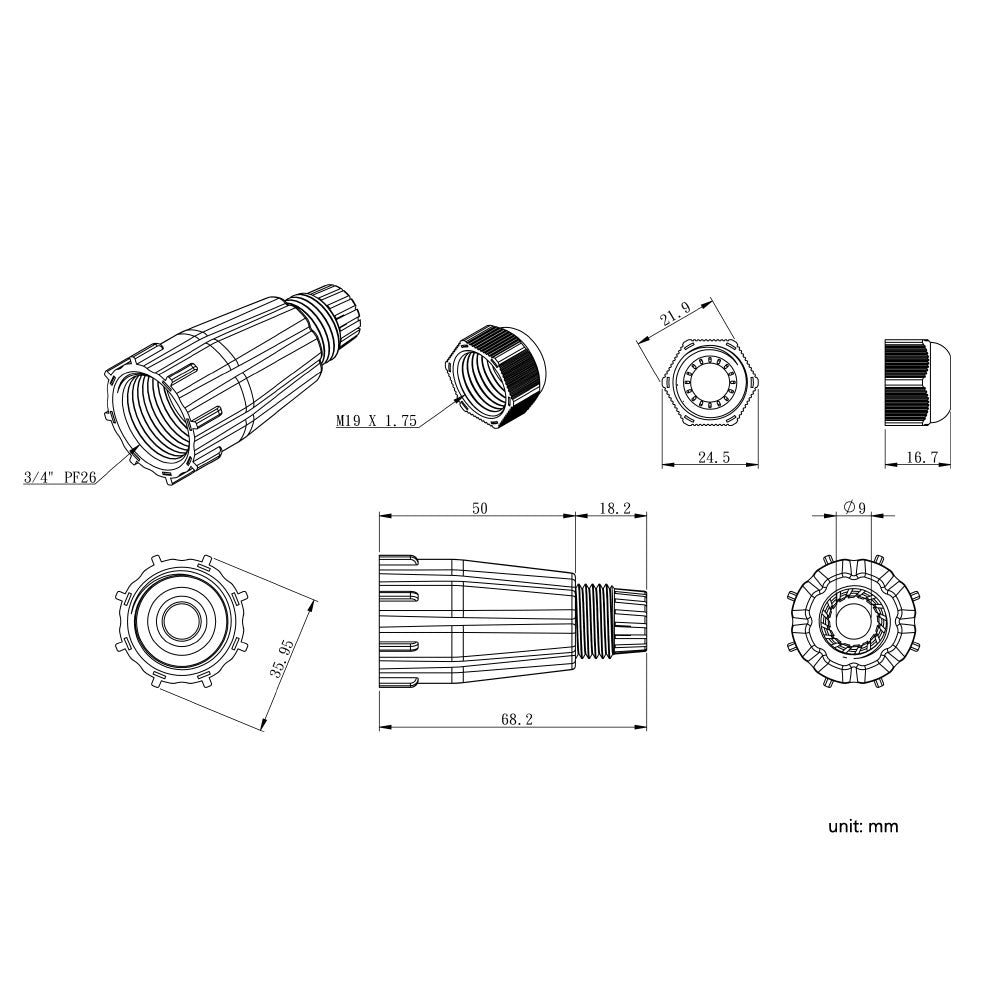

Thread Pattern
 3/4" PF26
Operating Temperature -10℃ to 60℃
Storage Temperature -40℃ to 68℃
Humidity 10% ~ 90% RH
Compatible Items
CN-C5E-FFS-IP68
 Cat5e RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
CN-C6-FFS-IP68 Cat6 RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
CN-C6A-FFS-IP68 Cat6A RJ45 Female to RJ45 Female Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
JK-C5P-SBK-IP68 Cat5e RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
JK-C6P-SBK-IP68 Cat6 RJ45 Female to 110 Punch Down Shielded Bulkhead Coupler - Waterproof IP68 Rated - Black
SB-EBH2-WH Single Gang Surface Mount Box with 2x Ethernet Bulkhead Knockouts - Waterproof IP68 Rated - White
WP-EBH1-SS Single Gang Wall Plate - 1x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel
WP-EBH2-SS Single Gang Wall Plate - 2x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel
WP-EBH4-SS Double Gang Wall Plate - 4x Ethernet Bulkhead Hole - IP44 Rated - Stainless Steel
Environmental
IP Rating IP68Rated When Used in Conjunction with Compatible Couplers
RoHS Compliant
Packaging Information
Product Weight 0.05 lbs [0.02 kg]

Download attachment - Spec Sheet
